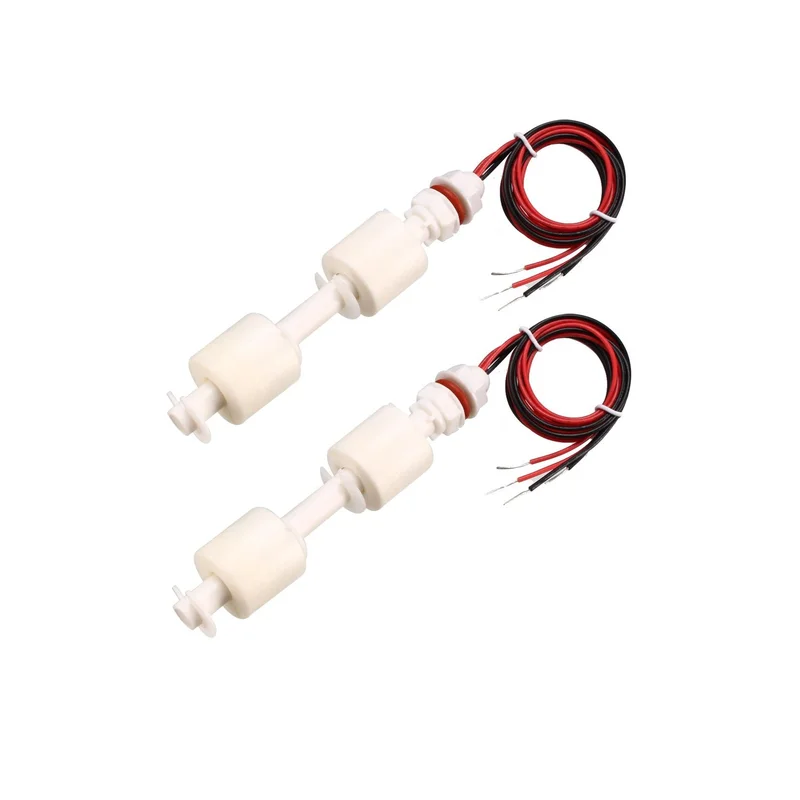

uxcell PP Float Switch for Water Pump Tank Liquid Water Level Sensor M10 115mm Length 2pcs-Fast Shipping

Description

Total Length: 115mm / 4.53″; Float Ball Size(Approx): 21 x 22mm / 0.83″ x 0.87″ (L*D); Thread Dia(Approx): 10mm / 0.39″; Cable Length: 40cm / 15.7″

Max Switching Voltage/Current: 110V DC/0.5A

HOW TO WORK – By using a magnet to sense the reed switch. Float switch is mainly composed of a magnetic spring switch and a float. There are magnetic materials in the float. When the float moves up and down with the water level, it will touch the magnetic spring switch to detect the liquid position

WIDELY APPLICATION – Float switch can be used for water heating equipment such as water dispenser, water heater, humidifier, etc. It also can be used for water tower, drainage pool, water tank, culture pond, etc

PLEASE NOTE – Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.
