Universal, For Axial, For Blade, For Losi, For Pro Boat, For Redcat Racing, For Team Losi, For Team Losi Racing, For Traxxas ATOMIC DIY ESC Cap Pack Kit – Just Add Capacitors – 2 Capacitor PCB-Fast Shipping

Description

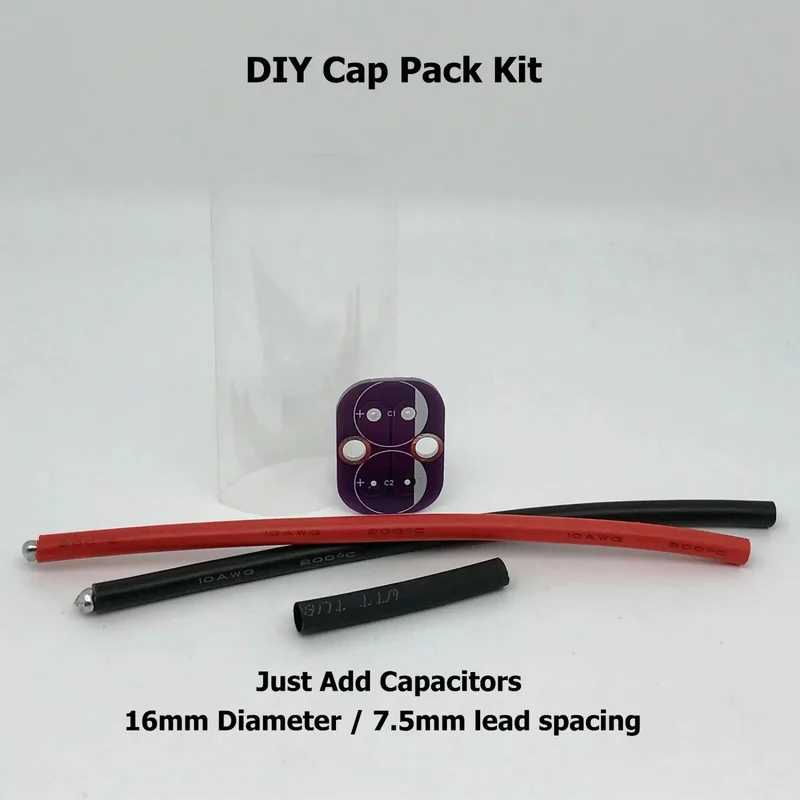

DIY Cap Pack Kit

This kit is designed for those who want to choose and supply their own capacitors.

PCB Specs-

Base Material: FR-4

Layers: 2

(2C Kit) Dimension: 33mm x 23.8mm

(4C Kit) Dimensions: 41mm x 33mm

(6C Kit) Dimensions: 58mm X 33mm

PCB Thickness: 1.6mm

PCB Color: Purple

Silkscreen: White

Surface Finish: HASL(with lead)

Outer Copper Weight: 1oz

Flying Probe Test: Fully Test

Material Type: FR4-Standard Tg 130-140C

Wire Specs-

Manufacture: BNTECHGO

Insulation Material: Silicone Rubber

Conductor Material: Tinned Copper

Conductor Specification: 1050/0.08TS

Conductor OD: 3.0 mm

Conductor Resistance: 3.270 Ohms/km

Conductor Cross-Section: 5.25 mm²

Insulation Thickness: 1.30 mm

Over Diameter: 5.5 mm

Supplied Length: 152mm/6inch

Heat Shrink Specs (2C)-

Material:PVC

Flat Width: 50mm/2inch

Flat Length: 75mm/2.95inch

Heat Shrink Specs (4C & 6C)-

Material:polyolefin

Flat Width: 75mm/2.95inch

Flat Length: 75mm/2.95inch

Thickness: 0.2mm (before shrinkage);

Shrink Temperature Range: -55 ~ 125

Rated Voltage : 600V

Shrink Ratio: 50%

It is recommended to use a heat gun to shrink

Capacitor recommendation (NOT INCLUDED)

Diameter: 16mm

Length/Heigth: 25-35mm

Lead Spacing: 7.5mm

Low ESR

5,000+ Hour Life
