Description
FFC/FPC Connectors are used to connect flexible cables or flexible printed circuit boards in electronic equipment, to provide reliable electrical connection and mechanical fixation, and are suitable for applications requiring high flexibility and compact design. Mainly used in various digital communication products, portable electronic products, computer peripherals, measuring instruments, automotive electronics, and other areas, such as digital cameras, laptops, MP345, game consoles, etc.

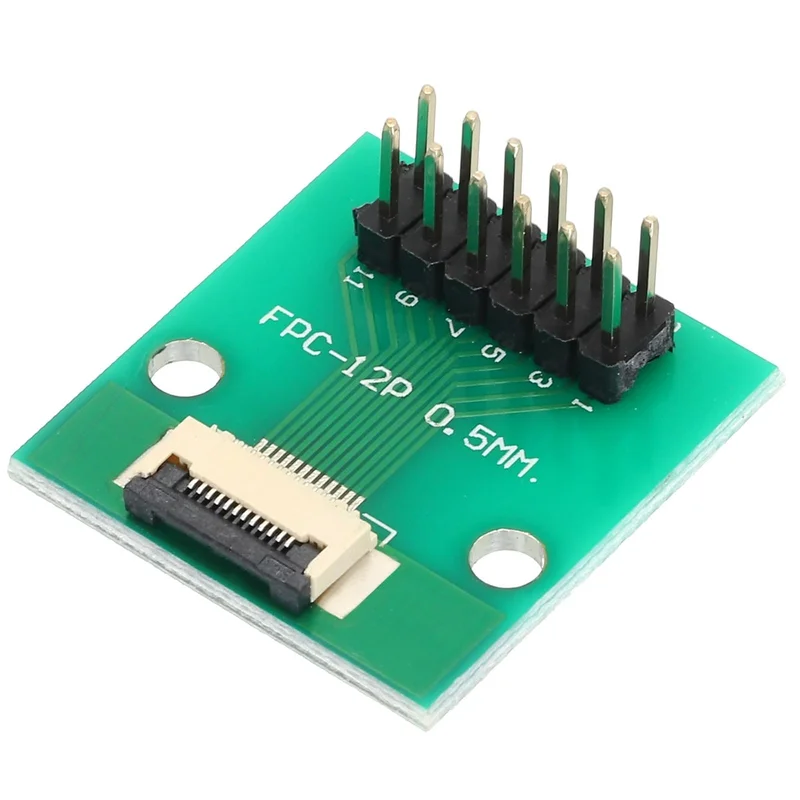

Double Sided with Single Flat Cable Socket PCB Support; 12 Pins; Socket Side 0.5mm Pitch and Back Side 1.0mm Pitch to DIP 2.54mm pitch; Overall Size: 26x24x11.5MM / 1.0×0.94×0.45 inch(L*W*H)
1. It usually has the characteristics of low insertion force and a high rate number of insertion and extraction. 2. It can provide high-density signal transmission and circuit connection in a limited space.
1. Flip-up the black interface ; into your flat cable(here is not included); to finish.
All dimensions above are measured manually, please allow +/-0.1 inches error.
