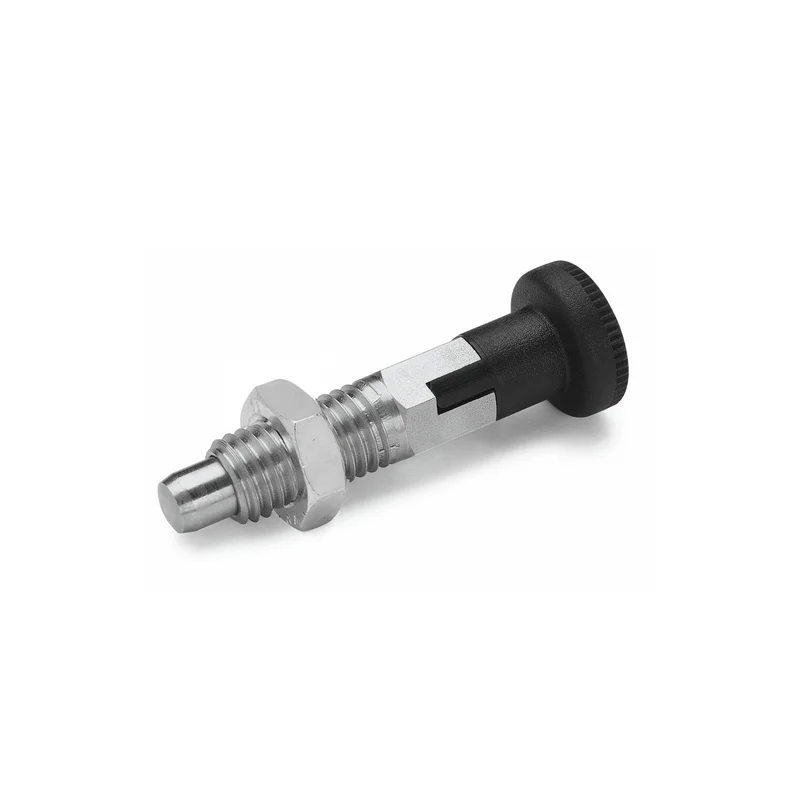

Ganter Standard Elements Locking Bolt GN 717 Bolt Diameter 8 mm Stainless Steel Pack of 2, Silver, GN 717-8-M12X1,5-CK-NI-Fast Shipping

Description

Locking path l1: 8 mm; thread length l2: 24 mm; bolt diameter d1: 8 mm; thread d2: M12x1.5; hex length l3: 9 mm

Box contents: 2 stainless steel locking bolts

Shape CK: with locking lock, with locking nut

Guide (threaded part) / locking pin: rust-proof stainless steel (1.4305); compression spring: rust-proof stainless steel (1.4310); button plastic (polyamide) black, matt, cannot be dismantled

Max. Tightening torque in Nm: 20; spring pressure in N: 6 (start) – 22 (end)
