Description

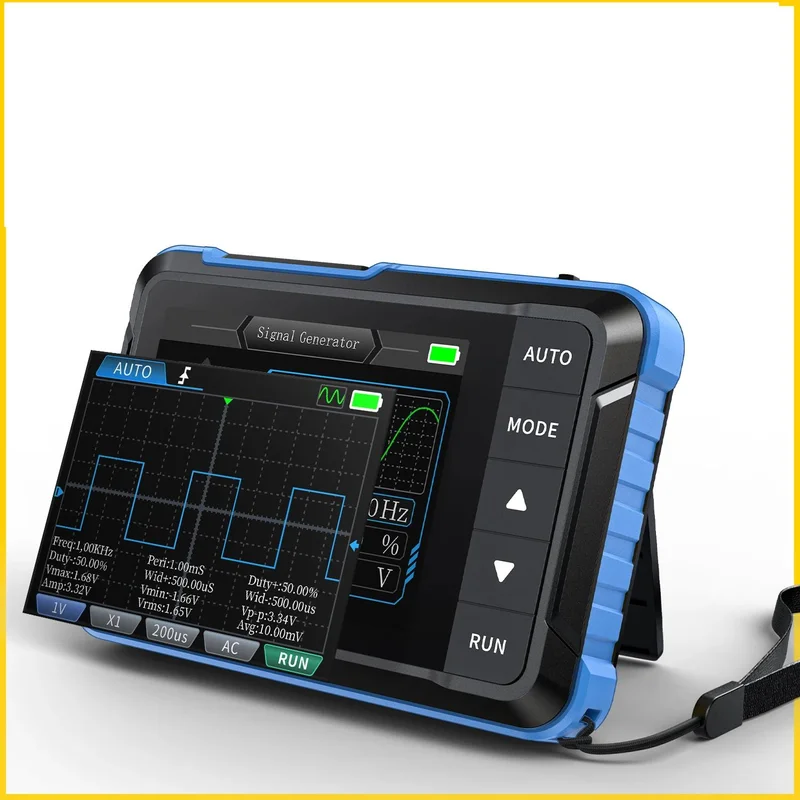

The Digital Portable Oscilloscope Signal Generator 2in1 1MHz Bandwidth 5MSa/s Sampling Rate Electronics Repair Tool combines the functionalities of an oscilloscope and signal generator into a portable, compact device. It features a bandwidth of 1MHz and a sampling rate of 5MSa/s, which make it a powerful tool for debugging and comprehending electronic device performance.
The oscilloscope function is designed to visualize the change of an electrical signal over time, allowing technicians to analyze the waveforms. It aids them to find abnormalities that might have occurred while the circuit was functioning, aiding in the troubleshooting process.
The signal generator, on the other hand, provides specialized output signals that are used to test electronic devices. It creates various types of waveforms, like sine wave, square wave, or triangle wave, which are used as stimulus signals in testing.
The tools portability makes it convenient for both field and bench work, facilitating quick electronic repairs. The combination of two key electronic tools into one device makes it cost-effective and time-saving. This is an essential tool for anyone involved in electronics testing and repair, from hobbyists to professionals.
This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.
In addition, it also comes with multiple functions signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged. * Mini Oscilloscope *
Sampling rate5MSa/s
Bandwidth1MHz
Vertical sensitivity10mV/Div-20V/DivProgress according to the 1-2-5 way
Time base range500ns/Div-20s/DivProgress according to the 1-2-5 way
Voltage rangeX1:40V (Vpp:80V) X10: 400V (Vpp :800V)
Trigger methodAuto / Normal / Single
Coupling methodAC/DC
* Signal generator *
Frequency0-10KHz
Duty cycle0-100% (rectangular and sawtooth
waves)
Amplitude0.1-3.3V
WaveformsSine wave, rectangular wave, sawtooth
wave, half wave, full wave, step wave,
anti step wave, noise wave, exponential
rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.
* Other Parameters *
Display2.8 inches/PPI:320*240
USB charging5V/1A
Lithium battery capacity1000mAh
Size99×68.3×19.5mm
Weight100g NO.1(Standard)
Host device *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User manual *1
Packaging color box *1
